Nestled in the bustling industrial heart of Addis Ababa, Tariku Metals stands as a trusted source for specialized materials, proudly supplying the robust Titanium Grade 10 bars and rods. Our commitment is to provide Ethiopian industry with unparalleled access to this high-performance alloy, combining local expertise with global quality standards. We understand that your projects demand reliability, and we are dedicated to being your essential partner, delivering the superior strength and corrosion resistance you need right here, right now.
Titanium Grade 10 bars and rods belong to the family of titanium alloys. They contain about 90% titanium and include a certain proportion of other elements, which is generally iron. This variety of titanium provides a unique combination of good strength, resistance to corrosion, and lightweight, making it suitable for several industrial applications. It mainly turns up in industries like aerospace, medical, and chemical processing.
The primary constituents of Titanium Grade 10 are:
Titanium (Ti): 90% (min.)
Iron (Fe): 10% (max.)
The titanium Grade 10 has gained a reputation for its far superior corrosion resistance in acids and its overall weight-strength ratio. Although it is not as strong as other titanium alloys such as Grade 5 or Grade 9, it has great corrosion resistance and good weldability, which makes it quite useful in applications where corrosion resistance and weldability are important. These bars and rods are used in applications like structural components, medical implants, and marine environments.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

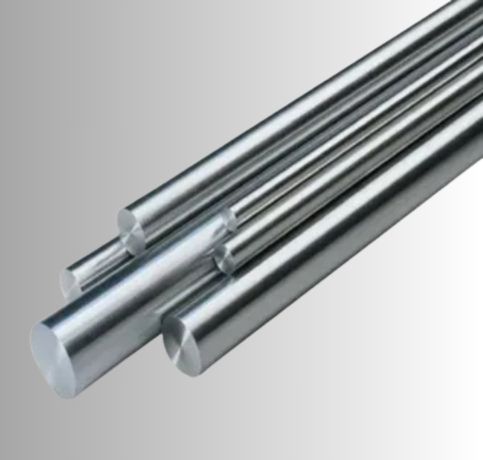

| Round bar size : | Diameter: 3-~800mm |

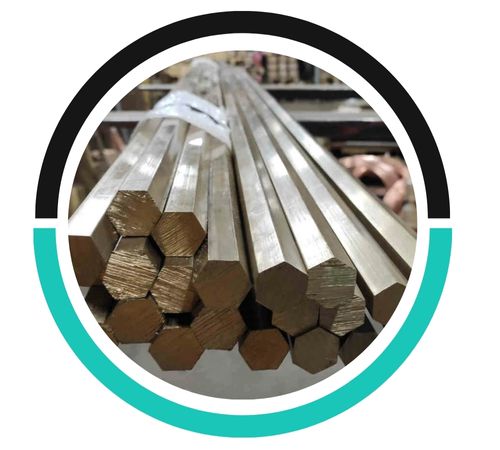

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

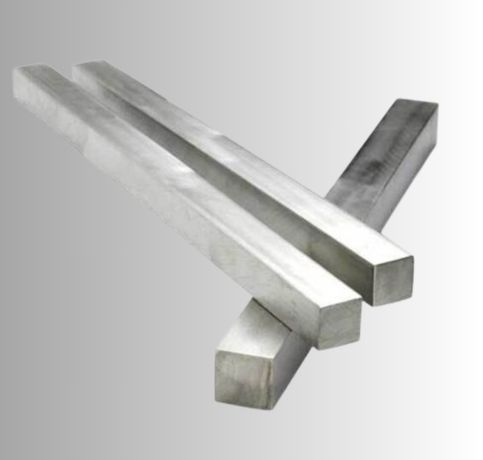

| Square bar size : | 4 to 100mm |

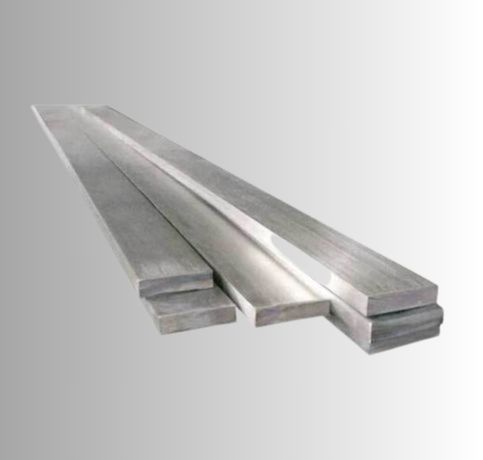

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 10 | – | R56410, R58030 |
| Grade | O | N | C | H | Si | V | Fe | Al |
| Grade 10 | 0.13 | 0.05 | 0.05 | 0.015 | 0.1 | 9.0-11.0 | 1.6-2.2 | 2.6-3.4 |
| Grade | Tensile strength (MPa) | Yield strength (MPa) | Elongation in 4D (%) | Reduction of area (%) | Hardness (HV) |
| Grade 10 | 1240-1380 | 1155-1210 | 4-12 | 10-30 | / |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@tarikumetal.com
Yes, Titanium Grade 10 Bars and Rods are suitable for hygienic and sanitary applications due to their excellent corrosion resistance, non-reactivity, and ability to withstand high temperatures, ensuring safety and durability.
The unique properties of Titanium Grade 10 make it indispensable for demanding applications, particularly where failure is not an option. It is a first choice for critical components in the chemical processing industry, used in pumps, heat exchangers, and piping systems that handle highly corrosive agents. Beyond industrial settings, its excellent biocompatibility sees it used in medical implants and surgical instruments. This alloy is also finding new roles in aerospace components and marine engineering, wherever extreme environments demand a material that stands unwavering against both pressure and corrosion.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Tariku Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Addis Ababa, Ethiopia
