Tariku Metals, located in Addis Ababa, Ethiopia, is a well-respected manufacturer and supplier of high-quality Titanium Grade 1 Bars and Rods. Known for their dedication to quality and precision, Tariku Metals offers titanium products that adhere to global standards for strength, corrosion resistance, and purity. Their Titanium Grade 1 Bars and Rods are crafted using cutting-edge technology, ensuring top-notch performance, lightweight strength, and impressive durability. These products are perfect for various industries, including chemical processing, marine, aerospace, and medical sectors, providing exceptional reliability and long-lasting performance even in tough operating conditions.
The Titanium Grade 1 Bars and Rods from Tariku Metals are made from commercially pure titanium, containing about 99.5% Ti along with small amounts of oxygen, nitrogen, carbon, and iron. This unique composition grants them excellent corrosion resistance, remarkable ductility, and superior formability. With a tensile strength ranging from 240 to 350 MPa, Titanium Grade 1 showcases moderate strength and outstanding toughness, even in low temperatures. It also boasts high impact resistance, low density, and excellent weldability, making it an ideal choice for applications that require lightweight materials with exceptional chemical and mechanical stability.
| Standards : | ASTM B348, B863 / ASME SB 348, SB 863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

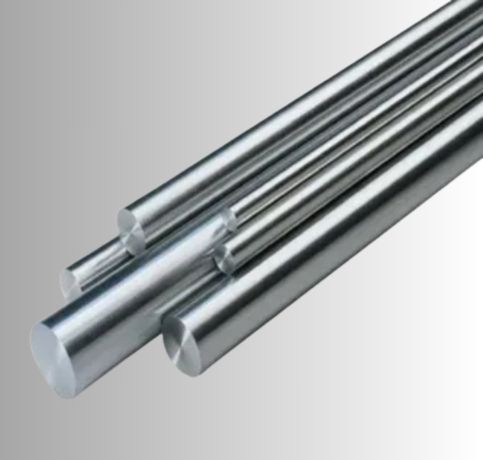

| Round bar size : | Diameter: 3-~800mm |

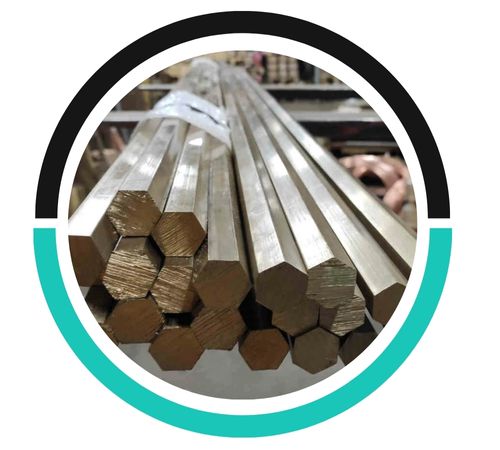

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

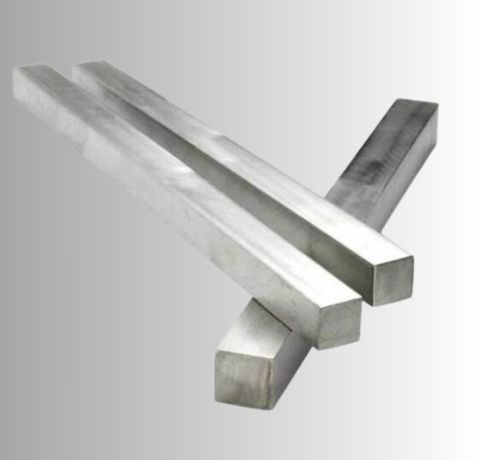

| Square bar size : | 4 to 100mm |

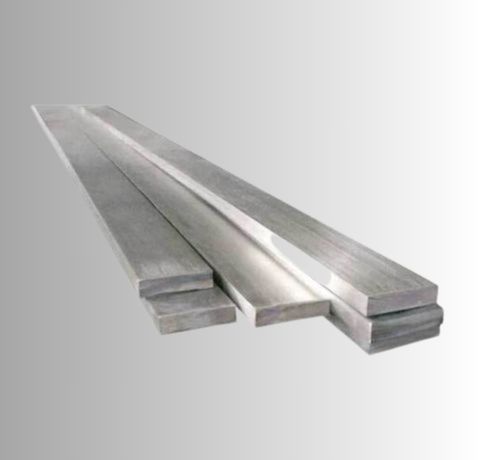

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 1 | 3.7025 | R50250 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 1 | 0.08 max | 0.03 max | 0.18 max | 0.015 max | Bal | 0.20 20 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 240 | 170 | 24 % |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.51 g/cc | 0.163 lb/in³ |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 1 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@tarikumetal.com
Tariku Metals’ Titanium Grade 1 Bars and Rods are widely used in industries that require high corrosion resistance and biocompatibility. They are perfect for chemical processing equipment, heat exchangers, marine fittings, desalination plants, and medical implants. In the aerospace and power generation fields, their lightweight strength and oxidation resistance are highly valued. Additionally, Titanium Grade 1 is utilized in architectural and automotive applications due to its attractive finish and durability. With Tariku Metals’ Titanium Grade 1 Bars and Rods, you can count on reliable performance and longevity, even in aggressive and challenging environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Tariku Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Addis Ababa, Ethiopia
