Nestled in the heart of Addis Ababa, Tariku Metals stands as a trusted partner for industries demanding exceptional materials. We proudly specialize in supplying high-quality Inconel 617 bars and rods, providing a local solution for projects that require unwavering strength and resilience under extreme conditions. Our commitment is to support Ethiopia’s growing industrial landscape with reliable, ready-to-use components that meet the most rigorous international standards, ensuring your operations proceed with confidence and efficiency.
The exceptional nature of Inconel 617 stems from its sophisticated composition, primarily a blend of nickel, chromium, and cobalt. This alloy is engineered to retain its impressive mechanical properties, including high tensile strength and excellent creep resistance, even when exposed to scorching temperatures. It doesn’t become brittle in cryogenic conditions either, making it remarkably versatile. This combination of toughness and stability is what sets these bars and rods apart from conventional materials.
| Standards | ASTM B166, ASME SB 166, AMS 5887 |
|---|---|
| Specifications | DIN, EN, ASTM, JIS, ASME, BS, AISI |

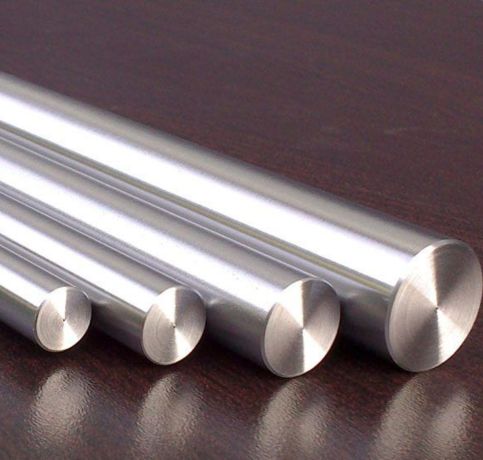

| 617 Inconel Round Bars size | Diameter: 3-~800mm |

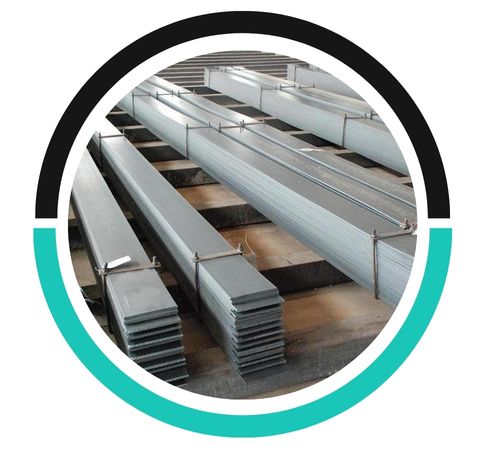

| Inconel 617 Flat Bars size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Inconel 617 Angle Bars size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Inconel 617 Channel Bars | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Alloy 617 Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Inconel 617 Billet Size | 1/2 to 495mm Diameter |

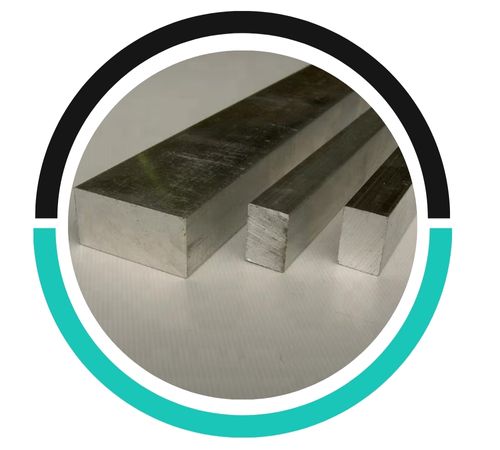

| Inconel 617 Rectangle Bar Size | 33 x 30mm to 295 x 1066mm |

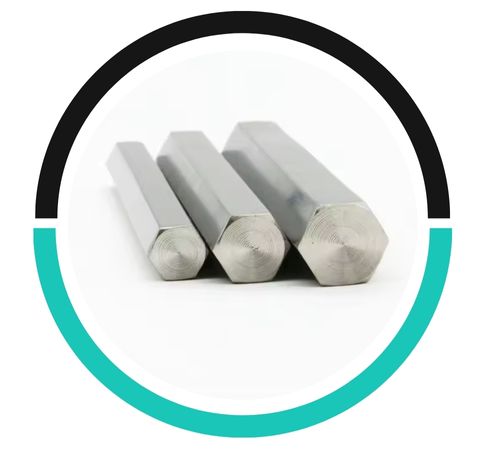

| Inconel 617 Hex Bar size | 2-100mm A/F |
| Inconel 617 Hollow Bars | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Diameter | 20mm, 30mm, 50mm, 80mm, 100mm, 150mm, 200mm, 500mm |
| Length | 1m-12m or as required |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |

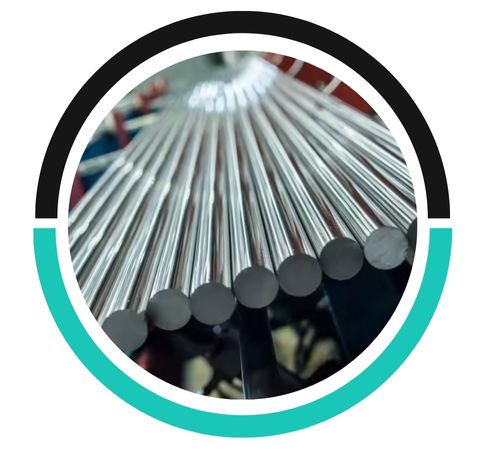

| Finish | hot rolled annealed, peeled, Bright, hot-worked and cold-worked rod and bar, centreless ground, Centreless Ground and Black, Polish, Cold Rolled (CR), hot rolled ( R), smooth turned, Cold (bright) drawn, Grinding, slit rolled edge, Rough Turned. |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Cold Drawn, Hot Rolled, Forged Round Bars, Cold Rolled, Rod |
| Processing | Bars cutting to 650mm |

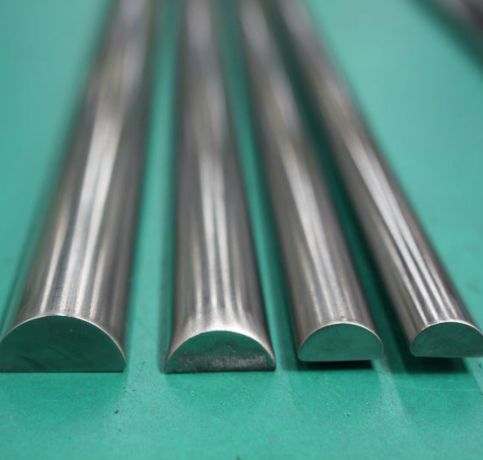

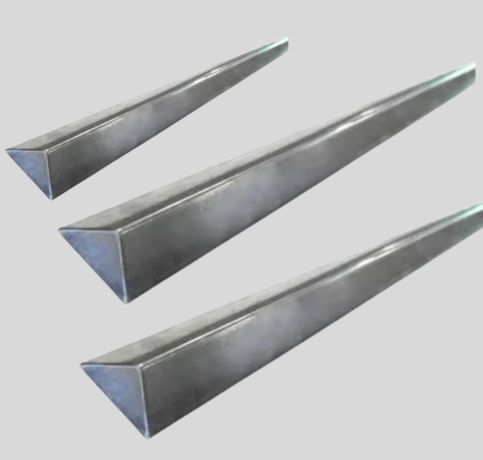

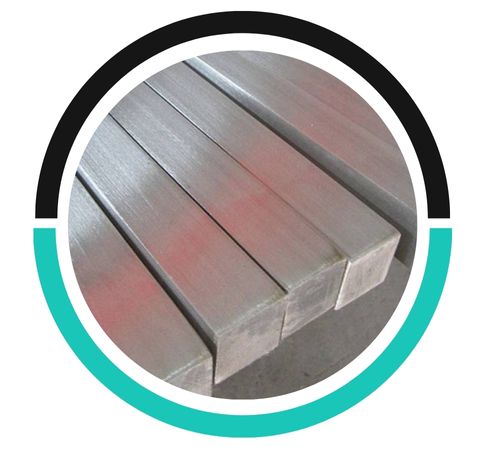

| Form | Rod, Round, Channel Bars, T-Bars, Flat Bars, Precision Ground Bars, Blocks, Square, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bars, Ingot, Billet, I/H Bars, Forging etc. |
| STANDARD | WERKSTOFF NR. | UNS |
| Inconel 617 | 2.4663 | N06617 |
| Grade | Ni | Cr | Fe | C | Mn | S | Mo | Si | Co |
| Inconel 617 | 48.85 – 62 | 20 – 24.0 | Balance | ≤ 0.15 | ≤ 1 | – | 8 – 10 | ≤ 1 | 10-15 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.3g/cm³ | 1363°C | ≥ 485 MPa | ≥ 275 MPa | 25 % |
Yes, Inconel 617 Bars/Rods are designed to perform exceptionally well in high-temperature environments up to 980°C.
Yes, they can be tailored in terms of size, dimensions, and specifications to meet specific industrial requirements.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@tarikumetal.com
This unique set of properties makes Inconel 617 indispensable in sectors where failure is not an option. You’ll find these bars and rods forming the backbone of critical components in gas turbines, industrial heating furnaces, and key parts of nuclear and fossil fuel power systems. They are also essential in chemical processing equipment and aerospace engineering, wherever extreme heat, pressure, and corrosive environments are part of the daily challenge. Essentially, they are the silent, robust workhorses enabling advanced technological progress.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
